The Exchange Recovery Manager helps you export mailboxes from EDB files, Live Exchange (on-premises), and Office 365 to PST files. The steps are:
Step 1: Add EDB files, Live Exchange (on-premises), or Office 365 as the source
To export data from EDB files, Live Exchange (on-premises), or Office 365, they need to be added as the source.
When you open the Exchange Recovery Manager, the Welcome screen will appear. Here, you can add Offline EDB file, Live Exchange (on-premises), or Office 365 as the source.
Note: You can click the Add Source button to open this dialogue box.
To add offline EDB file as the source
To add EDB files as the source:

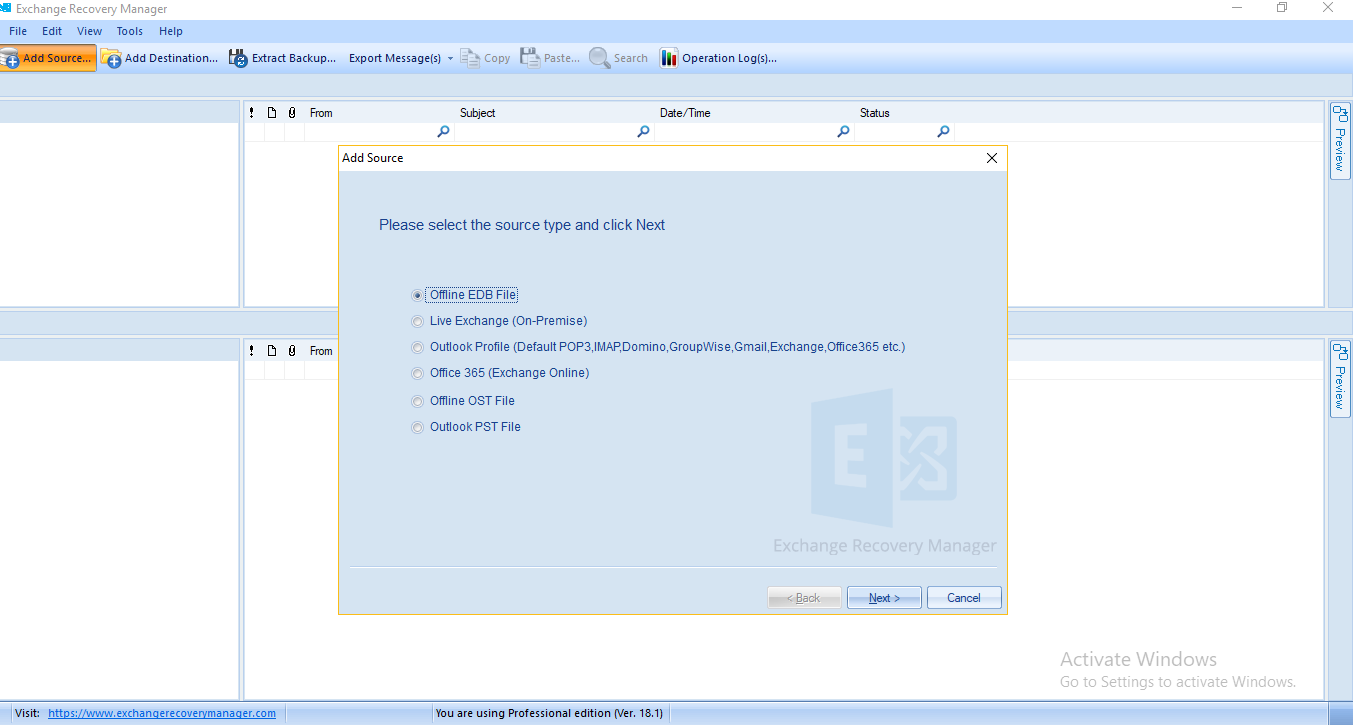

In the Add Source dialogue box, select Offline EDB File and then click Next.

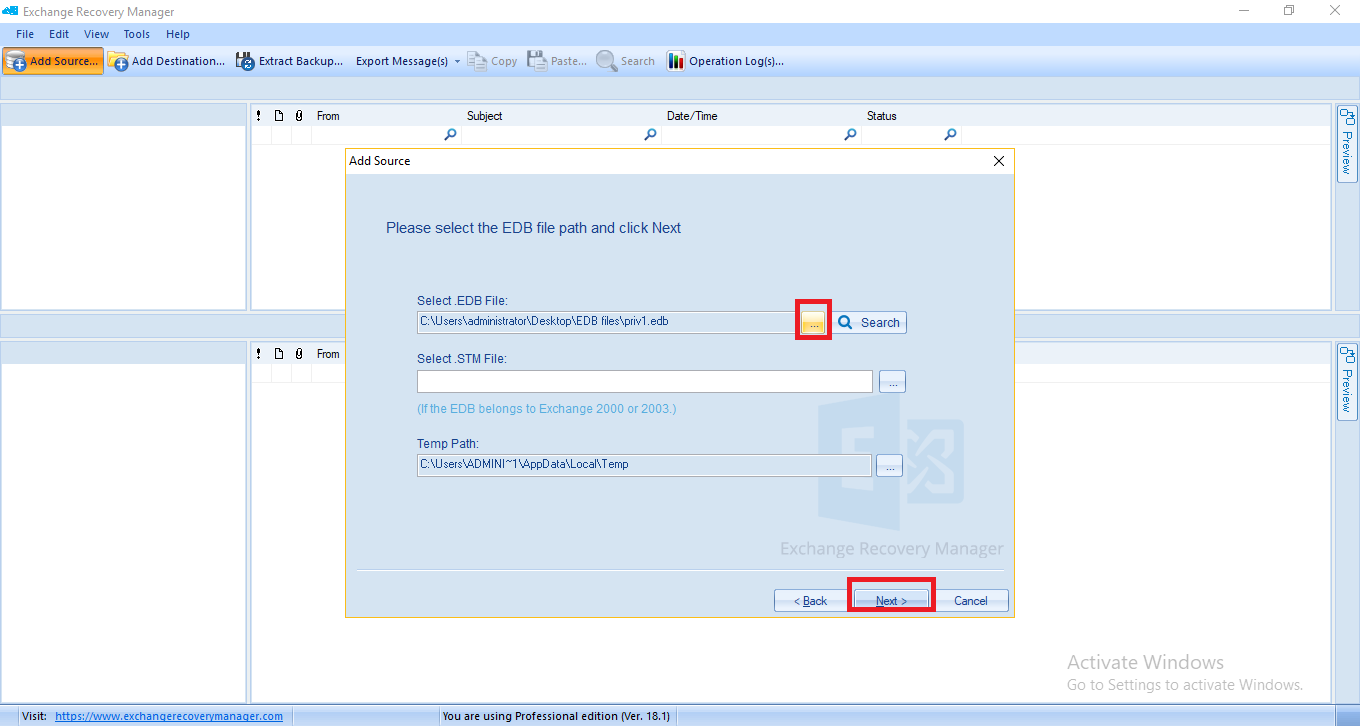

Click Browse and select your EDB file and click Next.

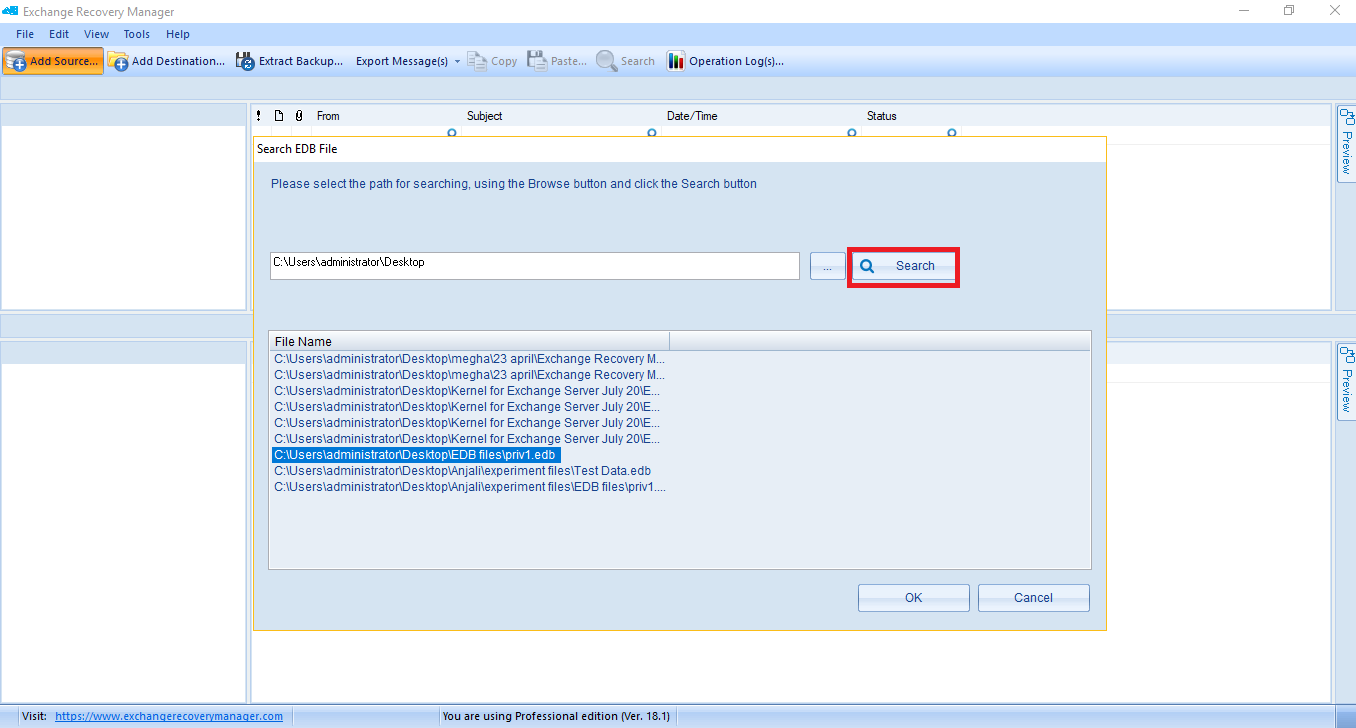

Note: If you don’t know the location, you can also search for EDB file(s) by using the Search option. It will automatically fetch all the EDB files present in the specified local system drive. Select the desired EDB file and click Next.

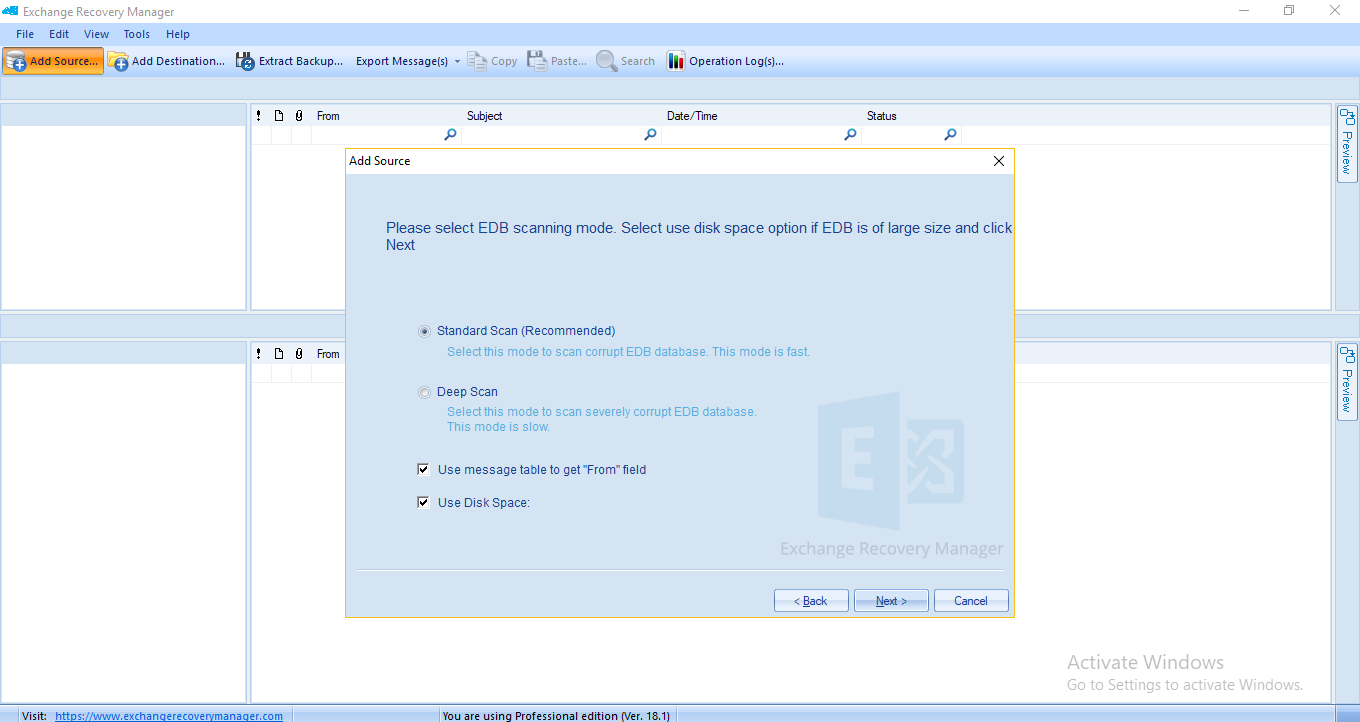

1.You have two options to scan the EDB file (Standard Scan or Deep Scan). Select the required option and click Next.

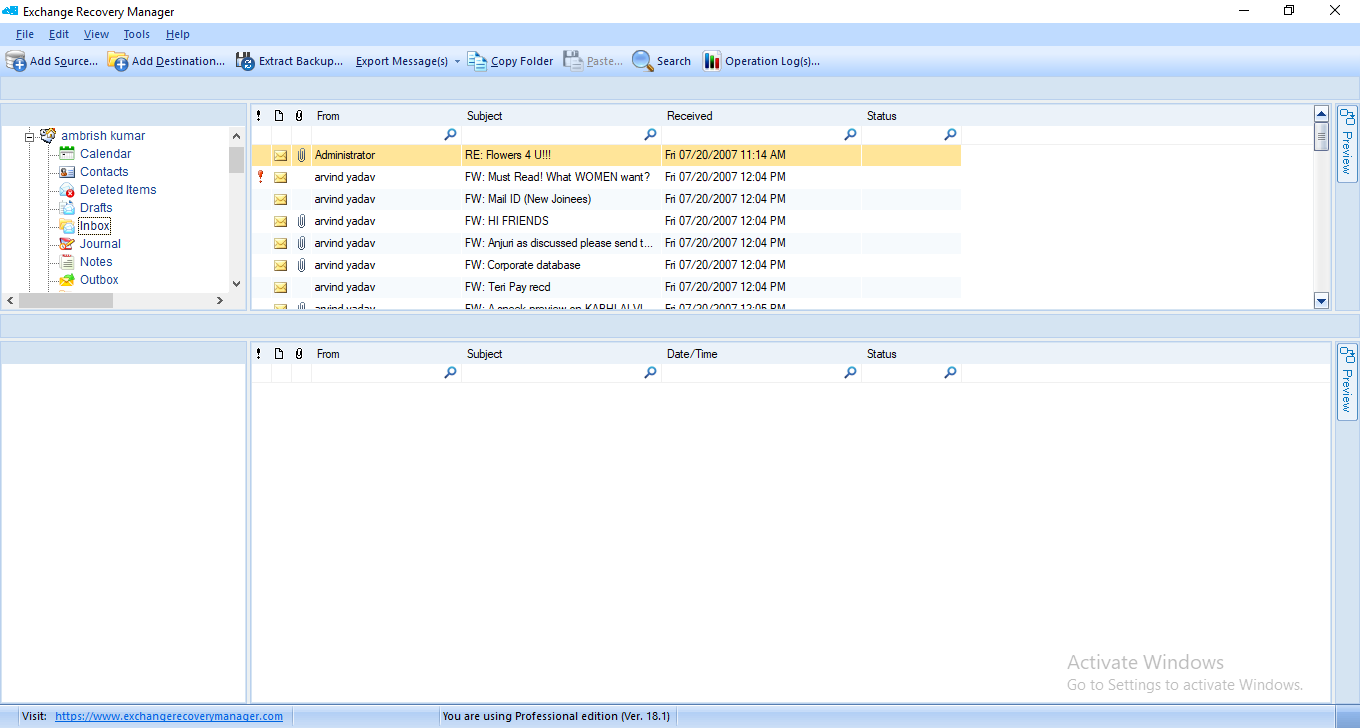

The EDB file gets added as the source file, and all its mailboxes get displayed. You can preview its content.
To add Live Exchange (On-Premises) or Office 365 as the source

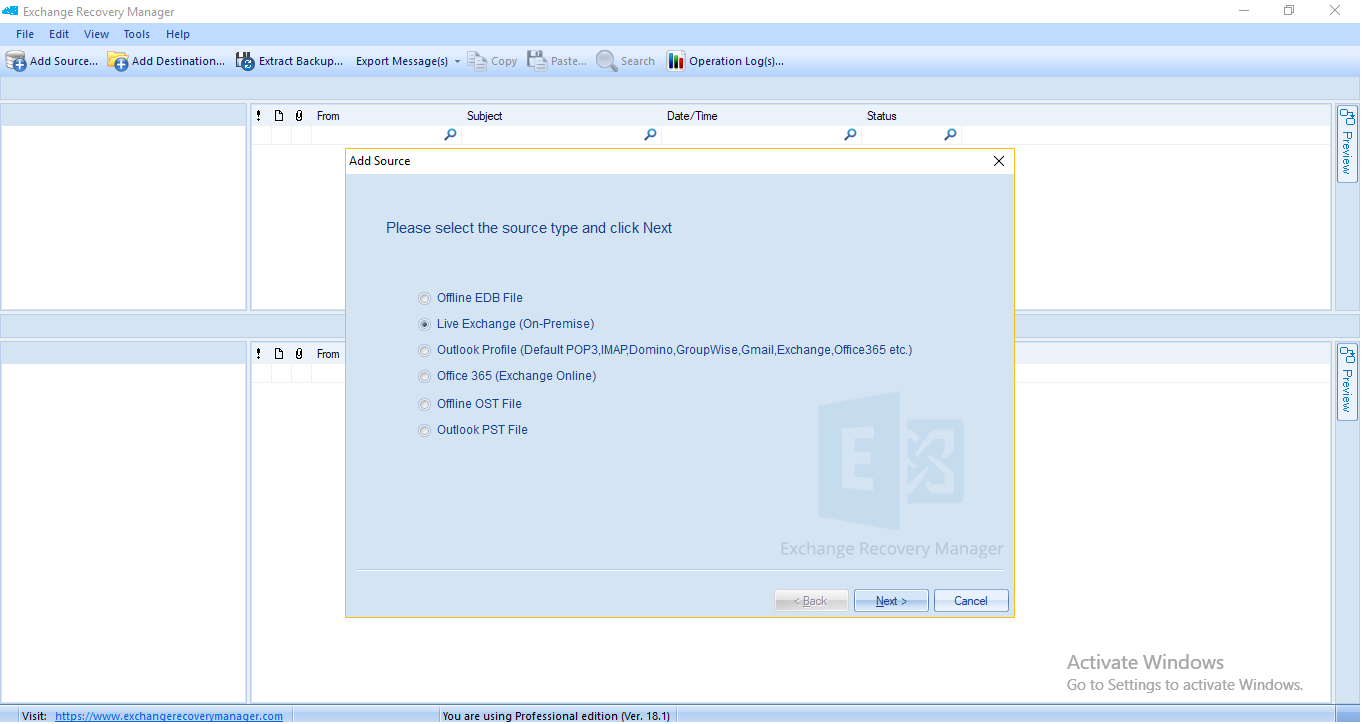

In the Add Source dialogue box, select Live Exchange (On-Premises) and click Next.
Note: To add Office 365 as the source, select Office 365 (Exchange Online).

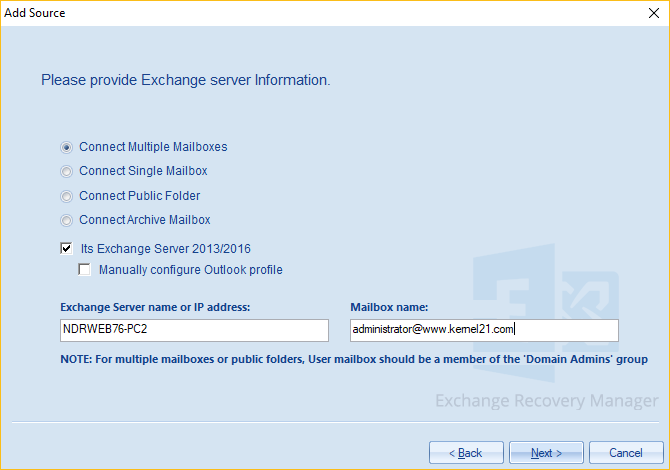

A dialogue box asking for the Exchange Server information will get opened.
- Select the required option (Multiple Mailboxes, Single Mailbox, Public Folder or Archive Mailbox)
- Mark the checkbox Its Exchange Server 2013/2016, if you are using Exchange 2016/2013 (also, you can opt to configure Outlook profile manually).
- Provide Exchange Server name or IP address and the Mailbox name.
Click Next to continue.

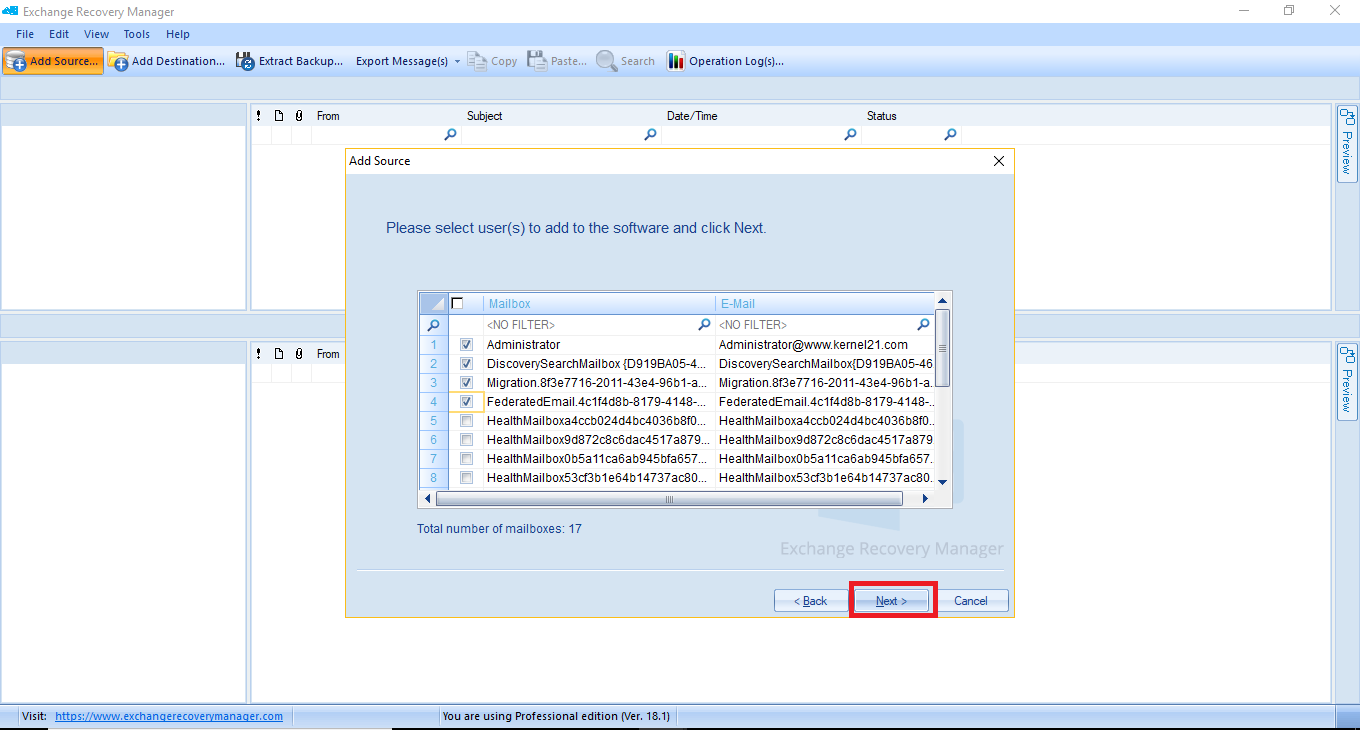

Select the mailboxes for migration. Click Next.

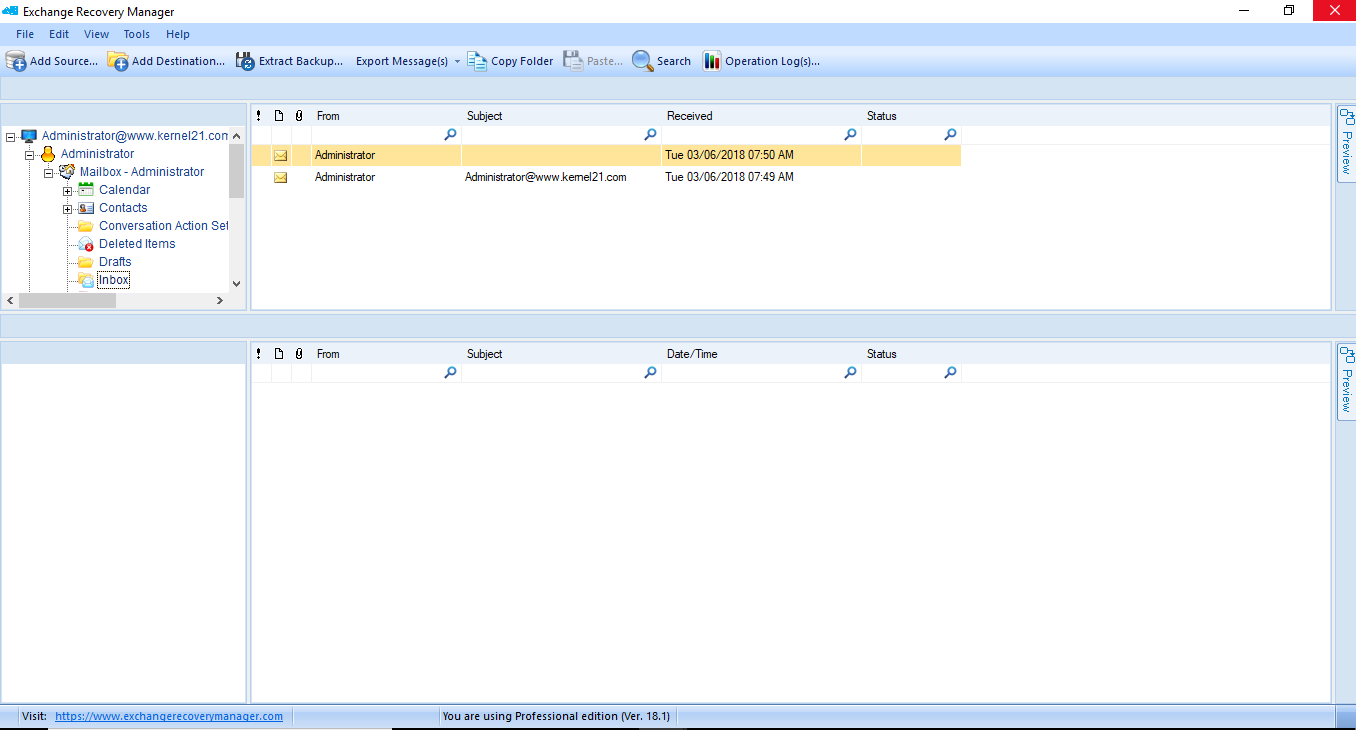

The Live Exchange Server gets added as the Source, and all its mailboxes are displayed. You can preview its content.
Note: Similarly, you can add Office 365 (Exchange Online) as the Source.
Step 2: Preview the source mailbox data (optional)

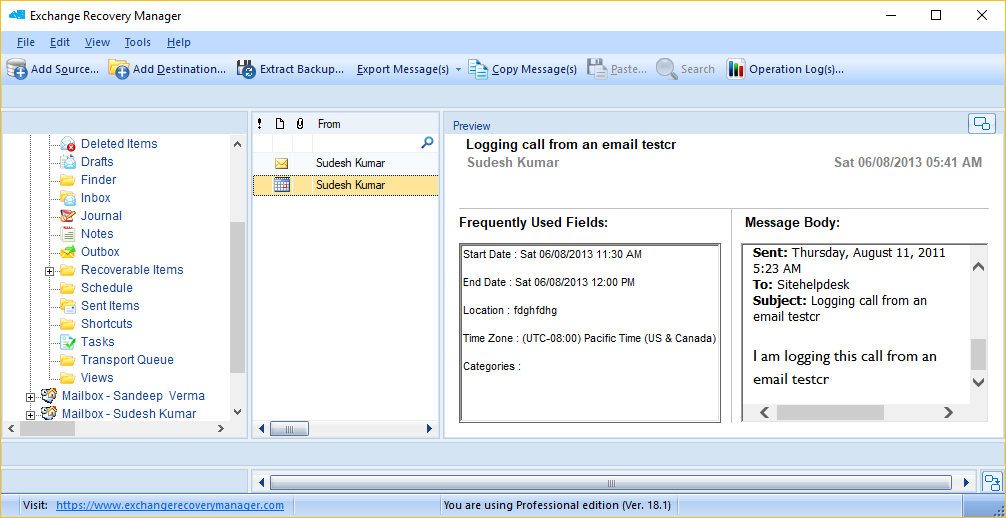

You can view the source mailbox content now. You can view the mailbox list, mailbox folders, message list, and individual items. For this, expand the hierarchy and select the required folder. Also, use the Preview button on the right to view individual items.
Step 3: Export Mailboxes to PST
After adding EDB files, Live Exchange Server (on-premises), or Office 365 as the source, you can export its mailboxes to PST. The steps are:

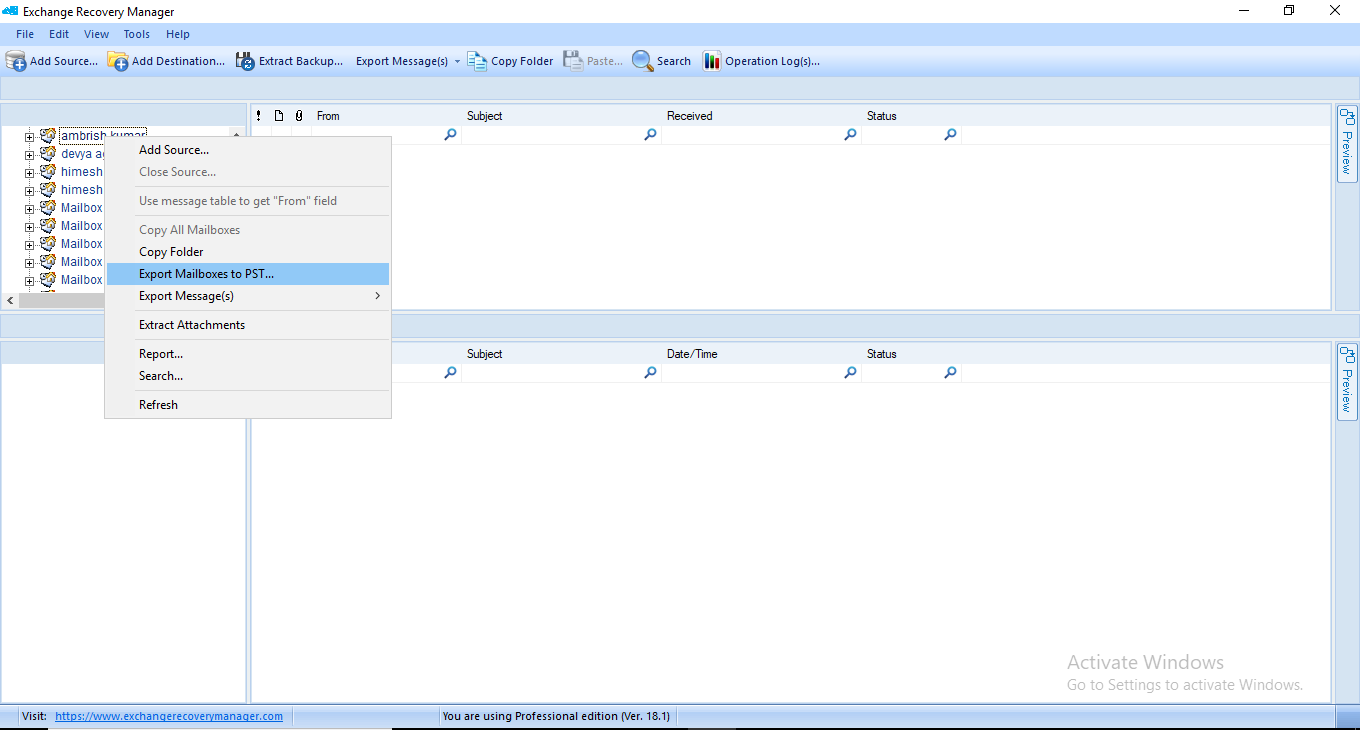

To export mailboxes, right-click the root (in the Source section) and select Export Mailboxes to PST.

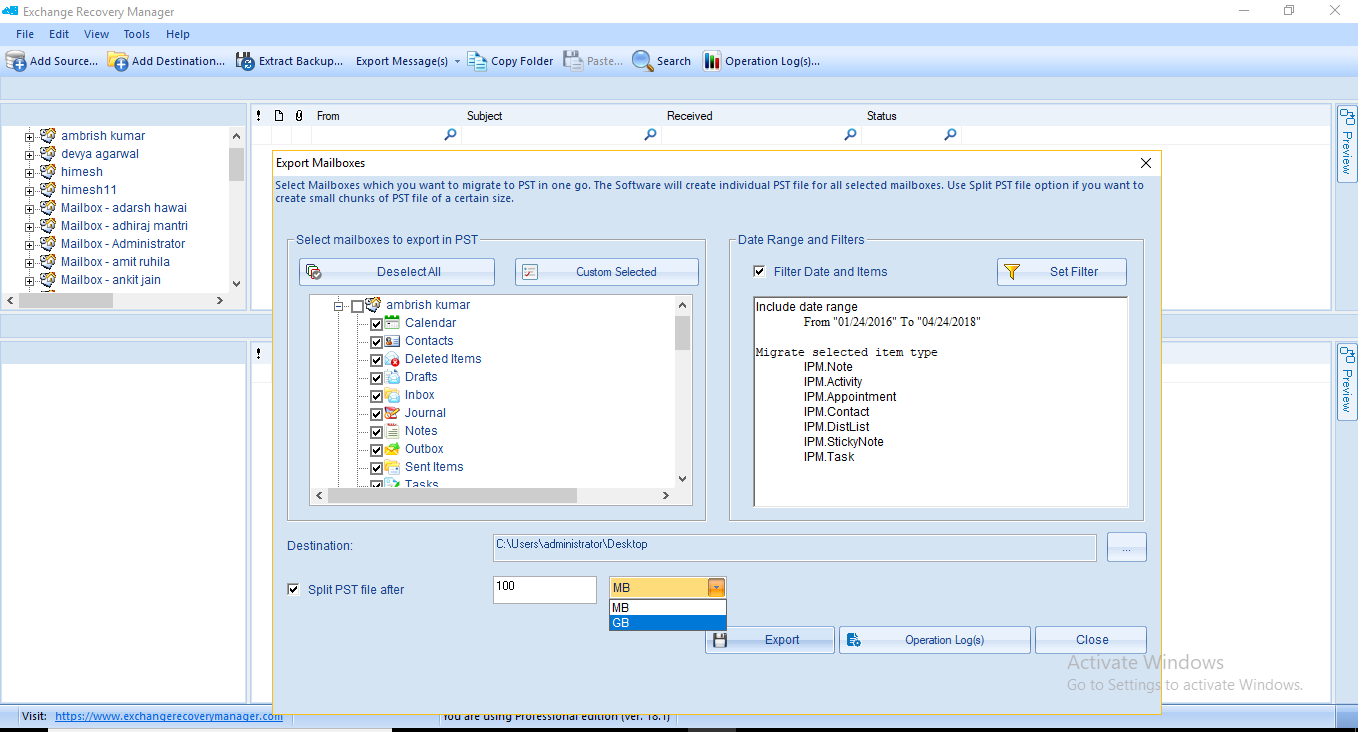

In the Export Mailboxes dialogue box:

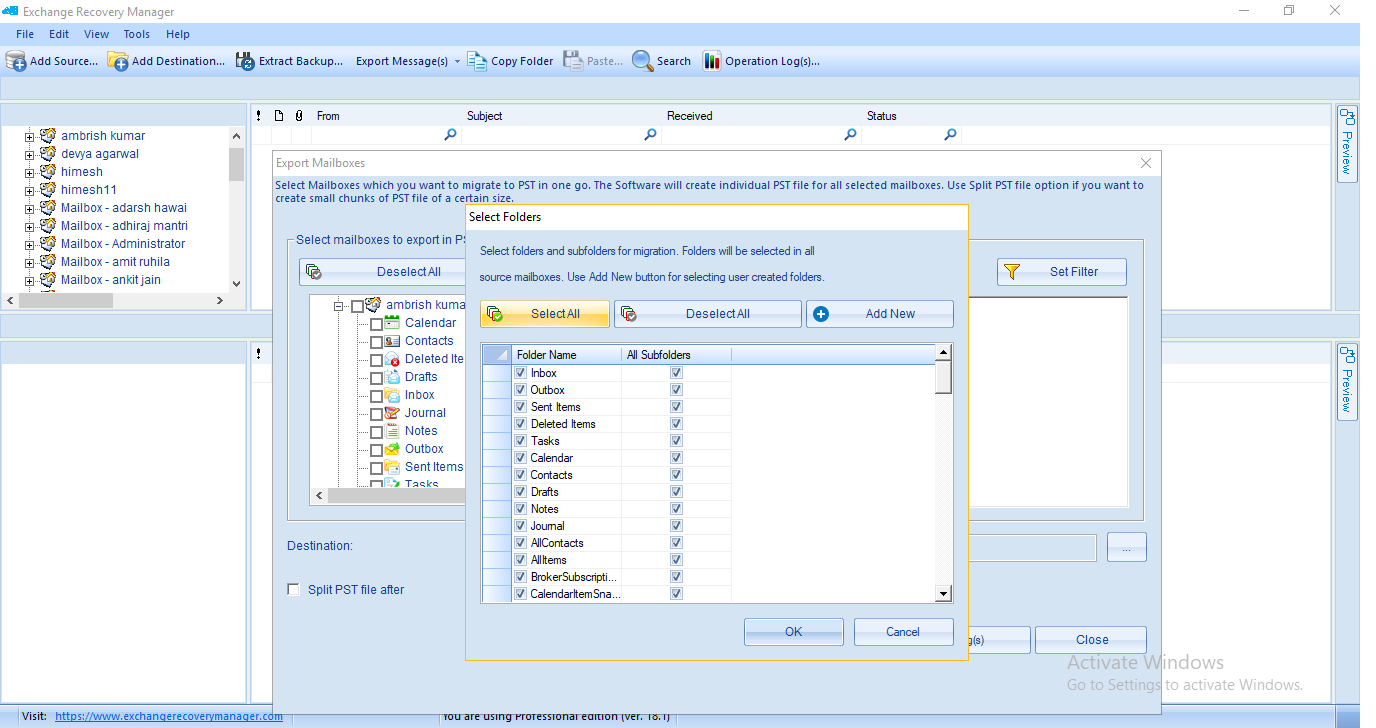

- Select the mailboxes & their folders you want to export.
- Set filters if required (Date Range & Item type)
- Choose PST file saving destination
- Provide the PST splitting details (if needed)
Finally, click Export.
Note: By choosing the Custom Selected option, you can apply the custom selections to all your mailboxes. It allows you to apply a custom selection of mailboxes to all/selected mailboxes.

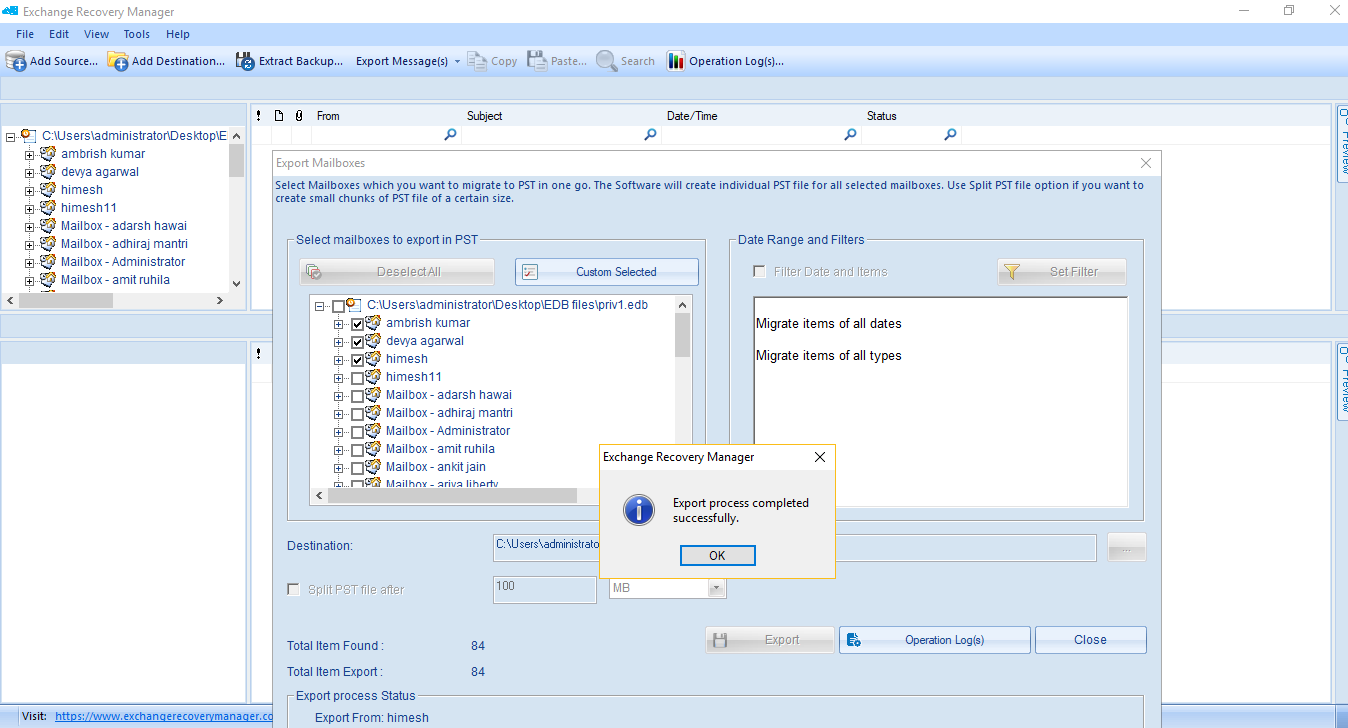

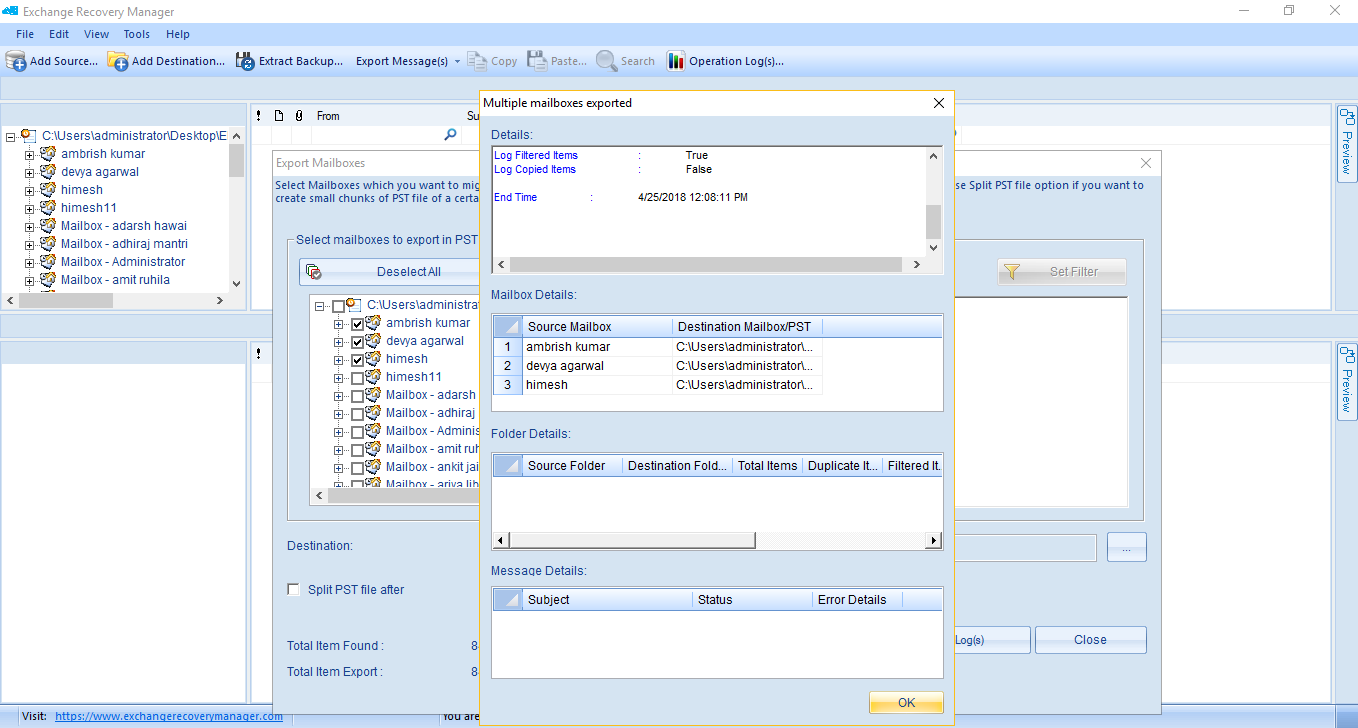

When the export is complete, you will get a confirmation message. Click OK.
1.Finally, you will get a summary of the export process.
Note: To get a detailed report of the export process, click Operation Log(s).
